Plastic Injection Molding Machine - Blog
PS product is very easy to crack and has poor impact resistance. Many customers have the problem with their moulds to manufacture PS product. There is a little crack or something like that, not smooth of surface. Then how to effectively avoid PS cracking during mould injecting? Then how to solve this problem?
Many customers will reduce cooling time, or reducing water from both side of the mould. This method is not completely acceptable because demolding the part with high temperature causing warping and this is undesirable for assembling of the part. Or faster injection speed to inject more speed is creating more flash. These can work to aviod PS crack, but not everythingtime. Crack of PS material is occuring from cycle to cycle. Then what can we do about this problem?
At first, you need to check draft and tool finish in this area. Too little draft and the part will be cracked while opening the mould. Check the steel temperature, poor or too much cooling could cause this as moulded in stress from different cooling. You may have a poor knit line to improve air venting of this area. Check how much radius is on the inside and outside of the part, the thickness and the radius is important.
And if it is crack when the mould is opened, before ejection, it could be from sticking in the stationary half of the mould. This maybe caused by uncorrectly moving of the inserts. You need to adjust the timing or polish.
Sino Holdings has rich experiences in molding field, we have successfully manufactured glass moulds, PS petri dish moulds, PS airline cup moulds, PS tableware moulds, etc.
If you have any question or comment, please feel free to contact with me.
Miss Diana
promotion@dakumar.com
Tag: machinery manufacturer supplychina mould makingchina mould injection mould for PS partsplastic PS mould chinamould supply china
As we know PET preform mould always need large injection capacity, according to that feature, we usually use PET preform injection machine. Compare with normal injection molding machine, it have some differences.
The screw of PET preform injection machine is bigger and longer, so it can inject more PET material; and the machine has high plasticization capacity. It has four or above stages precise temperature PID control for barrel. For PET preform injection machine blow 650T, the machine use spring nozzle.
PET prefrom injection machine can be standard injection machine, variable pump injection machine, and servo motor injection machine. Injection molding machine supplier can offer the buy the best choice for the PET preform production line.
Posted by Ellen
Email: dakumar.service@gmail.com
Tag: injection molding machinePET preform mouldPET perform injection machinePET injection machinePET molding machine
Dakumar is one of the famous plastic injection machine suppliers in China,we have customers from Asia, America, Europe,Middle East and Africa,and we have set up service center in around 20 countries and regions. Based on the feedbacks from the market, we are always keeping on improving our machinery to meet customers’ requirements.
After some technical meetings,Dakumar decided to make a new upgrading for the standard of injection molding machines for all machine types since this July,we have done a lot of machine improvement this time, many additional functions now become our standard,like hydraulic safety,PLC controlled back pressure system,T-slot,nozzle guard cover etc. Except this, we also did some adjustment for our machine surface looking. No matter you are out old customer or new, we believe that you will be satisfied with our new machines.
Miss Alice
dakumar@sinogroupe.com
Tag: dakumar injection molding machineservo motor injection machineInjection machine improvementmolding machine supplierhigh standard injection machine
China has many plastic moulds factories. Most plastic mould factory are located in Guangdong, Shenzhen, Ningbo and Taizhou. Many years ago China plastic mould quality is not good. However with the improve of the mould technology, more and more plastic mould factory can offer customer with high quality plastic mould.
With many years in plastic mould industry, Sino Mould build a very large and modern plastic mould factory. With 20 years experience in making plastic mold, Sino Mould win a good reputation all over the world. It becomes one of the most famous factory in all plastic moulds factories in China. We can offering customer all kinds of plastic mould with high quality.
If you want to order plastic mould, please feel free to contact me.
Miss Diana
sino2@cnmould.com
Tag: China plastic mould companyorder plastic injection moldhigh quality plastic moldplastic molds company Chinaplastic mould service

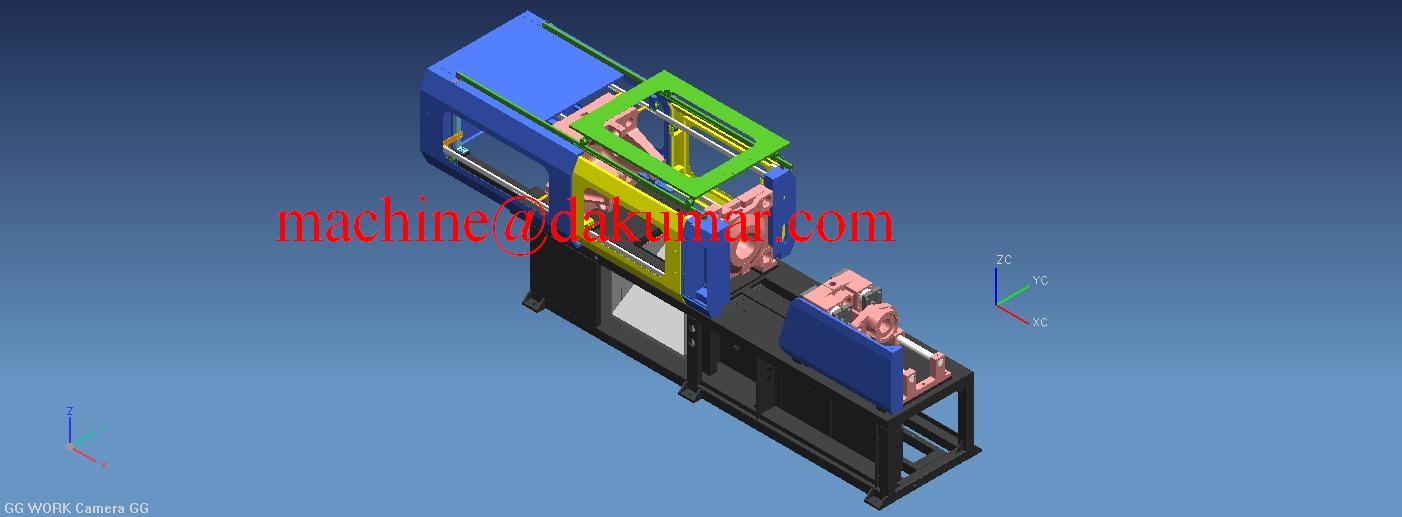

Two-plate injection machine are widely used for big model injection molding machine, now in China, molding machine two plate design are getting more and more.Dakumar Machinery started the research and development for two plate injection machine since 2012, The design of our two plate injection machine model 800T is finished.
Compared to three plate machines, the appear of two plate injection machine brings us many benefits:
Two plate injection machine saves space due to its smaller machine size compared to traditional three plate machine,
machine cost is much more economical
Operation speed is faster
More flexible clamping force adjustment
Energy saving
Stable operation
Better precision control of mould adjustment
We believe our two-plate molding machine will be popular in the near future,because it has so many advantages. If you are interested, please come to contact us for more discussion.
Miss Alice
Skype: sino-holdings
Moldingtech@gmail.com
Tag: two plate machineadvantages of two plate molding machinemolding machine two platesbig two plate machineChinese two-plate molding machine
Cooling facilities are needed for injection molding factory, this is not only for reducing the cycle time,but is also necessary for mould and machine life,and affects the products quality as well.
If you are new in the filed,and want to set up a new production line, suppose you have one DKM268T and 5 sets moulds, one 10 ACI air chiller is enough,this is easiler for you ; but if you want to enlarge the production and make more investment shortly,we suggest you prepare one big cooling tower with water pump, and also water chiller, of course you need to dig a water pool, if you did this preparation, then in the future, you do not need to buy more cooling tower, and the cooling circulation will be very effective. Dakumar Machinery offer cooling facilities and other molding auxiliary equipment along with injection machines.
Miss Alice
Skype: sino-holdings
Moldingtech@gmail.com
Tag: water chillerAir chillerinjection molding factoriesmolding auxiliary equipmentwater cooling facilities
Buy injection machines from China. Injection molding machinery injection molding machines supplier, Dakumar Plastic Machinery manufactures all kinds of plastic molding machines to meet customers' machine purchasing need.
Dakumar injection machines with auxiliary equipments,
PET injection machine,
PVC injection machine,
standard injection machine,
variable injection machine,
servo power save injection machine,
high speed injection machine,
double color injection machine
Meet all your machine buying lead for different kinds of plastic products manufacturing.
If any item meet your requirement, please feel free to contact with me.
Miss Diana
promotion@dakumar.com
Tag: plastic injection moldinginjection molding equipmentinjection molding machinerybuy injection molding machineinjection machine supply
For PET preform production or plastic molding with PET material,PET plastic molding machine is needed, this machine is different than normal molding machine, Dakumar--Chinese molding machine supplier, offer PET machine molding plastic.
Due to the unique material property,the proportion of screw length and diameter for PET plastic machine is bigger, 24:1 for example, and the preplasticizing motor is also bigger than normal machine which gives more power during material melting,Dakumar machine new PET machine type 200T,300T,400T,500T,600T can realize high speed injection molding.
Miss Alice
Skype: sino-holdings
Moldingtech@gmail.com
Tag: PET plastic molding machineChinese molding machine supplierPET plastic machinePET special machine plasticPET high speed machine

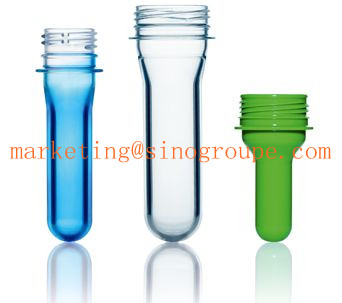

Sino Holdings Group offers injectionPET preform moulding service. We are prominent injection PET preform moulding supplier.We offer wide range of injection PET preform moulds that are used for produce PET bottles and Jars.
We supply injection PET preform moulding service with our subsidiary company-Sino Mould, Dakumar Machinery, Anole Hot Runner System.
Sino Mould designs and manufactures changeable part for the PET preform mould, such like half part interchangeable, core interchangeable. We make 2 cavities up to 72 cavities PET preform molds. The mold steel is procured from the most reliable and trusted vendors in the market. Dakumar Machinery Co.,Ltd supply injection machine from 50T to 3600T with high performance. ANOLE hot runner can offer general or special hot runner manifold and hot nozzles according to customers' requirements and gains good reputation from international markets for reliable quality and stable performance.
We are injection PET preform moulding supplier. You can earn injection PET preform moulding , PET preform injection moulding comprehensive services from Sino Holdings Group.
Miss Summer
Skype: sino-mould02
MSN:sino-mould02@hotmail.com
Mail: marketing@sinogroupe.com
Web: http://www.cnmould.com
Tag: injection PET preform moulding services supplierPET preform injection moulding full servicesupply full set service for PET preform injection moldingfull services for PET preform moldingPET preform injection moulding comprehensive services
Any machine or electronic apparatus needs maintenance. Good maintenance can expand machine service life substantially.
What is the right way to maintain injection molding machine?
1) Ensure the power is rightly connect, buttons and switches are rightly used, the procedure of starting machine is right according to instruction.
2) The regular check and maintenance of injection machine could be divided as weekly, monthly and annually items.
1. Weekly maintenance
a. Check and tightening screws such as connecting screws on elbow, screws to fix mould, screws to fix limit switch etc.
b. Check the cooling system of hydraulic oil and lubricating oil. Check whether there is leakage of oil or water and fix or change seal ring if necessary.
c. Check the oil condition of lubricating points and oil pipes. Whether there is water, metal powder or other impurities in the oil. Change lubricating oil or filter the oil if necessary.
2. Monthly maintenance
a. Check hydraulic oil quality. If there is impurities, oil insufficient or water, take necessary measures.
b. Check the electrical lines, loosen or not.
c. Check air filter on electrical cabinet, clear and take down and clean if necessary.
d. Clean hydraulic oil filter.
e. Clean the moving areas such as tie bar, and lubricate.
3. Annually maintenance
a. Check hydraulic oil quality, usually it should be changed every 1-1.5 years. For new machine, 3 months after put to use, the hydraulic oil should be drained and filtered and clean the valves, pipes, oil boxes, then put the oil back.
b. Revise error between thermocouple temperature indicator and thermometer measurement.
c. Check connection points fastness in electrical cabinet. Check whether the insulation rubber is aged. Change the lines if necessary.
d. Check gear system of mechanical transmission. Such as clean the bearing, check wear condition of the bearing. Change bearing if necessary. Check wheel gear wear condition, lubrication oil condition in gear box, etc. and make records.
e. Check screw, and barrel wear conditions, fix wear and scratch and make records.
f. Take down and check driving motor, hydraulic pump, motor. Check wear condition of bearing and pump body, etc, clean and add lubricate oil. Make records.
g. Check quick-wear part, seal ring. Change if necessary.
If an injection machine is maintained in the right way and right frequency, it not only make machine work more stably and safely, and produce more qualified products. There will be less chance that it break and needs repairing. It will also profoundly prolong the service time of the machine.
sinoauto@live.cn
Tag: injection molding machineInjection machine maintenanceinjection machine protectionprolong injection machine service
CE standard machine was very popular beteen European factories, north America in the previous years. However CE standard injection machine has been popular all over the world. For example, some north America countries, and some middle-east countries...
Most of customer want to know what's the difference between standard machine and CE standard machine.
CE standard machine features 1: CE standard machine add a cover to keep safety. It can avoid some accident happen when the operator climb from the top of the machine.
CE standard machine feature 2: CE standard machine add a cover for the nozzle part in order to avoid plastic shoot up.
CE standard machine feature 3: CE standard machine have hydraulic oil pipes lock.
CE standard machine desgin is considered as ensure more safety when work. If you need to order CE standard injection machine, please feel free to contact me.
Miss Diana
promotion@dakumar.com
Tag: CE machineCE injection machinesCE plastic injection machineorder CE standard injection machinebuy CE injection machine China
Dakumar has always seen the huge demand of high performance of PET molding line as our challenge, and we are keen in offering our worldwide customers with our best effort successful PET molding line. Being the top quality preform for PET molding line supplier in China, we are doing always improving in PET mold design improvement, PET injection molding machine upgrade as well as service training for stuff and engineers.
DKM PET molding line with high speed, high precision and reliability, cost-efficiency and human-friendly. We has exported more than hundred lines in the past years, offering top quality preform for PET molding lines, cap closure lines, packaging as well as complex technical parts,which offers pioneering performance
features and creates the optimal conditions for a high quality of molding efficiency.
For example, 48cavity preform molding line, 64 cavity cap molding line, 72cavity test tube and syringe molding solution…
Come to our engineers for more technical points discussion or enquiry for your starting of business. we will give your our professional PET solution. Technical enquiry line: commercial@cnmould.com
SKYPE: sinomould.dakumar2
Tag: PET injection moldingPET preform mould supplybottle production line solutioncap mould solutionhigh preformance molding line
